Pre-fabricated modular balcony system

Introducing the market’s most rigorously tested, easier buildable and light balcony system. Forte Pespa balcony extruded products are manufactured using the prime low carbon billet 6063A aluminium, which gives a better yield and tensile strength, while at the same time helping to reduce carbon footprint.

Design Consideration

In the process of conceptualising a new product, we established a set of considerations and objectives to guide our design endeavours.
  • Improvements in structural performance
  • Improvements in buildability
  • Improvements in cost point
  • Increased Quality and Carbon Footprint
  • Factory Production / Optimisation

Connections

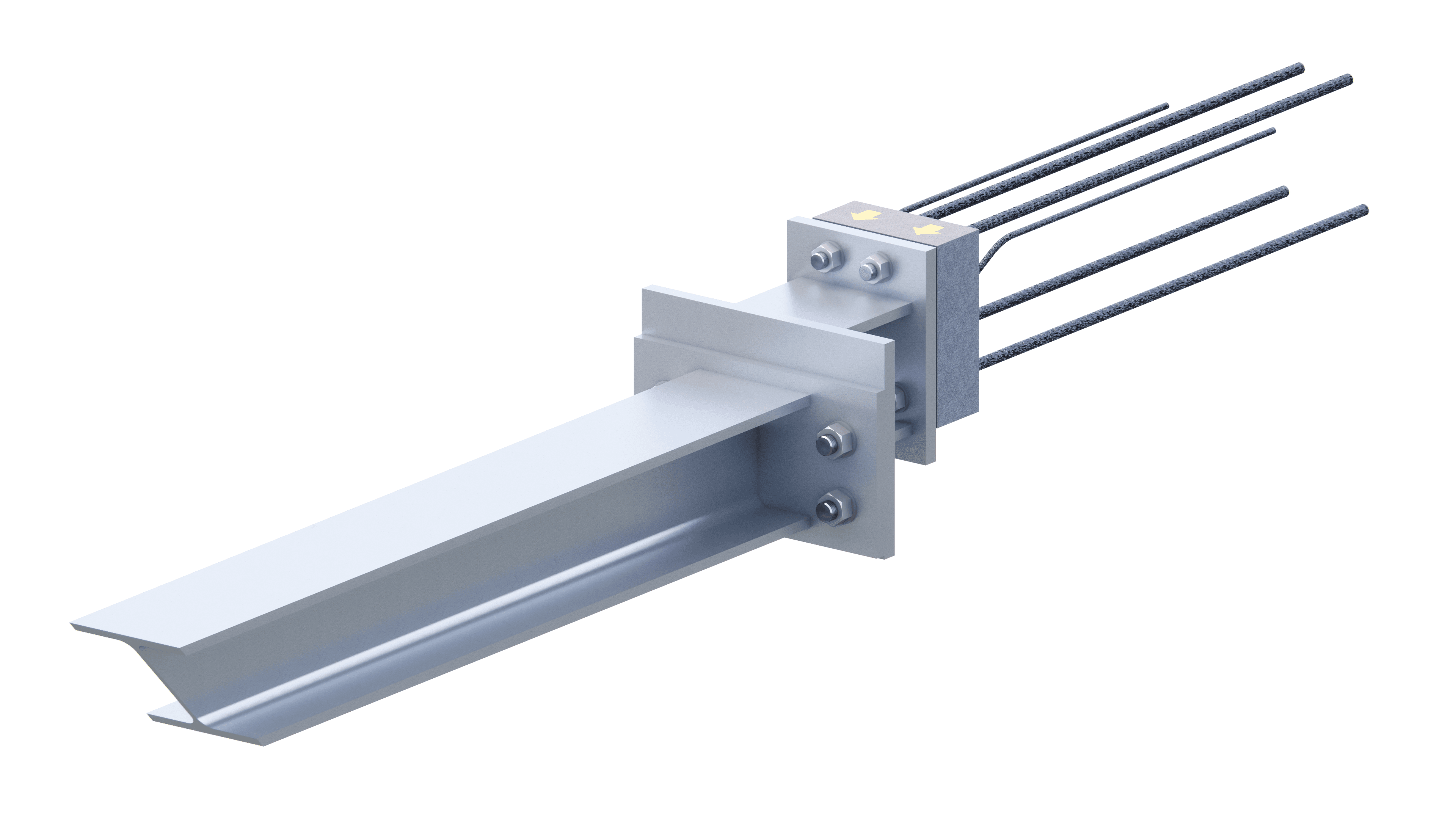

Cast in situ connection

Cast in situ connection: used in reinforced concrete structures, made by load-bearing thermal insulation element (i.e. Schöck Isokorb®) + stub section + steel beam.

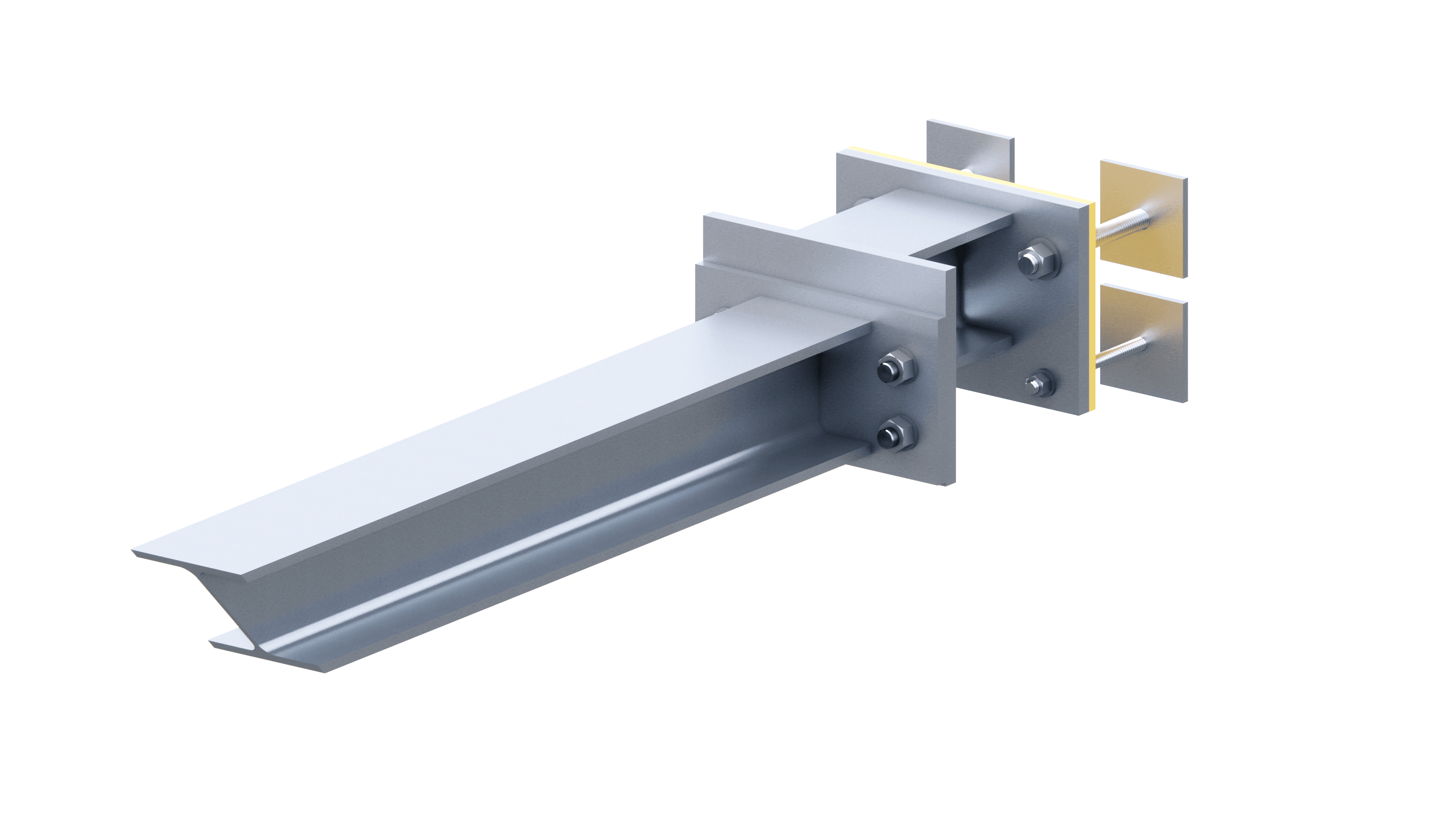

Precast unitised connection

Precast unitised connection: used in prefabricated buildings, installing the anchor-stub system into the prefabricated reinforced concrete wall at the position required for the balcony beams installation

Decking & Soffit

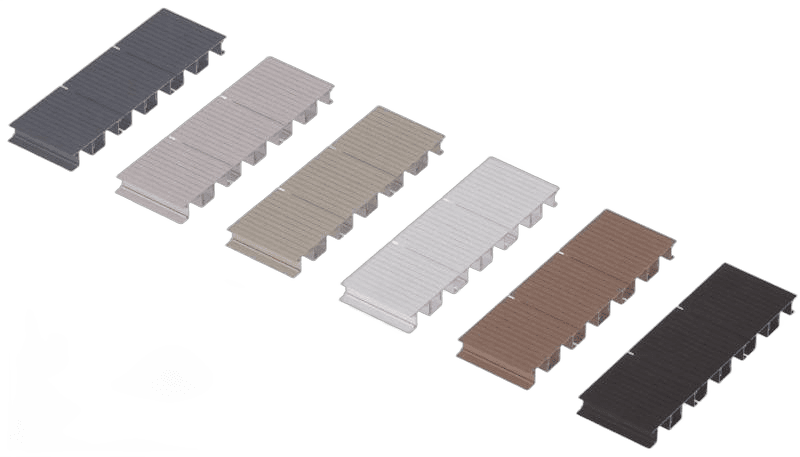

One-deck decking profile

The One-deck decking profile is made from aluminium alloy 6063A, a mix of silicium, magnesium, iron and other minerals, a Syntha Pulvian Qualicoat Class 1 & 2 performance powder coating finish and A2-S1 fire rating classification.

A range of standard RAL colours is readily available: RAL 7016,  RAL 7037, RAL 7039, RAL 7040, RAL 8014 & RAL 9005.

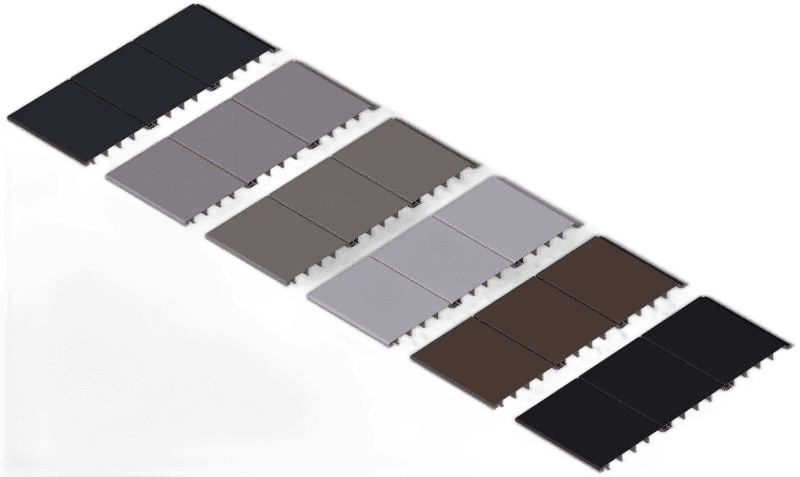

One-clad cladding profile

The One-clad soffit profile is made from aluminium alloy 6063A, a mix of silicium, magnesium, iron and other minerals, a Qualicoat Class 1 powder coating finish and A2-S1 fire rating classification.

Our cladding is also ideal for architecture designs and its low-carbon footprint level support eco-friendly construction.

A range of standard RAL colours is readily available: RAL 7016,  RAL 7037, RAL 7039, RAL 7040, RAL 8014 & RAL 9005.

Balustrade

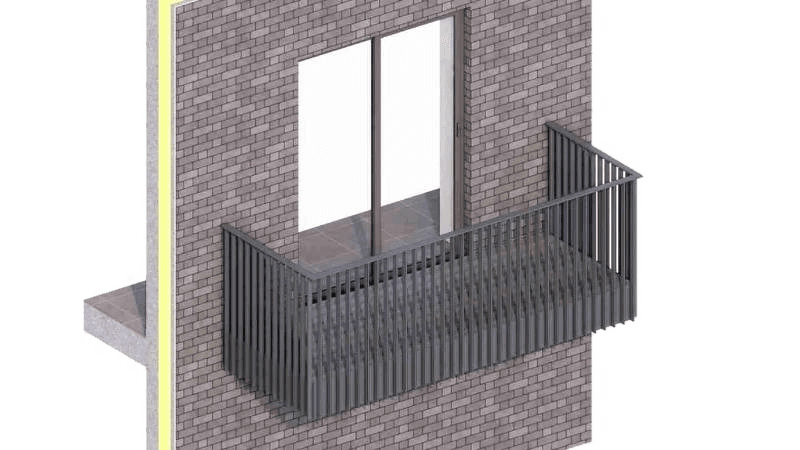

VMR

Vertical Metal Rail
The lighter balcony system with 15x50mm rails balustrade, sloped handrail with no visible fixings or welding, textured and anti-slip decking, coating cladding and free drainage system at the front of the balcony.

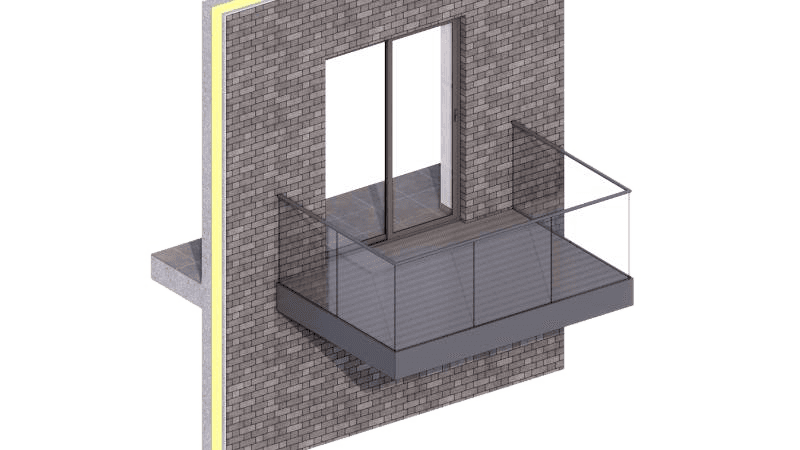

GLASS

Glass Balustrade

The most elegant balcony system with 21,52mm toughened laminated glass balustrade, U channel handrail with no visible fixings or welding, textured and anti-slip decking, coating cladding, free drainage system at the front of the balcony.

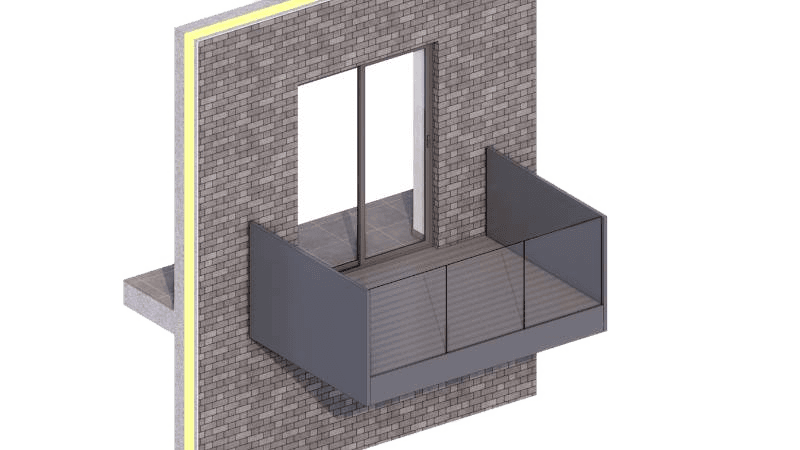

HYBRID

Glass Balustrade & Gable Ends

The balcony system that mixes the elegance of the glass and the need to ensure privacy with the side structures, textured and anti-slip decking, coating cladding, free drainage system at the front of the balcony.
